Hydro excavation has transformed the way industries tackle digging and excavation projects. This innovative process, which is safe, precise, and environmentally friendly, is an alternative to traditional methods and is beneficial in a variety of applications.
What is Hydro Excavation?
Hydro excavation, also called vacuum excavation or soft digging, is a non-mechanical process used to excavate land. High-pressure water and a vacuum system are used to break up and remove soil. Unlike traditional digging methods that rely on backhoes and trenchers, hydro excavation minimizes the risk of damaging underground utilities, making it an essential technique in modern construction, utility maintenance, and civil engineering projects.

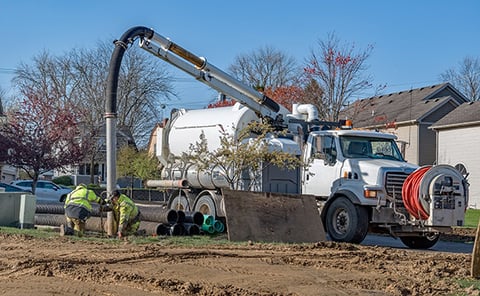

To conduct hydro excavation, water is released at high pressure through a dig wand to loosen the soil and expose deeper layers. A vacuum hose, typically mounted on a truck, removes the slurry byproducts into a debris tank for safe disposal.
Hydro Excavation Applications
Due to its versatility, hydro excavation is utilized across a wide range of industries. Some common applications include:
- Utility location and installation: Safely exposing underground utilities for maintenance or installation
- Slot trenching: Creating narrow trenches for cables, pipes, or other installations
- Debris removal: Cleaning out tanks, pits, or other confined spaces
- Cold weather digging: Thawing frozen ground for excavation in winter conditions
- Pipeline maintenance: Uncovering pipelines for inspection or repair
- Daylighting: Exposing buried utilities or pipelines to verify their location
Advantages of Hydro Excavation
Hydro excavation offers numerous advantages over traditional digging methods, including safety, precision, adaptability, and environmental impact.
Enhanced Safety
By eliminating the need for heavy equipment near sensitive underground utilities, hydro excavation minimizes the risk of damage to critical infrastructure, reducing potential safety hazards for workers and the community.
Improved Precision
Removing soil through a high-pressure water stream allows for pinpoint accuracy, which is ideal for projects requiring detailed or narrow digging. This precision ensures minimal disruption to surrounding areas.
Adaptability
Commonly used in Canada as an efficient method of digging on frozen soil, hydro excavation can be performed in virtually any weather condition making it an excellent choice for year-round projects.
Environmentally Friendly
Traditional excavation methods often lead to significant soil disruption and waste. Hydro excavation, however, precisely targets the focus area, meaning less soil is displaced and the environmental impact is minimized.
Dixon Products for Hydro Excavation
Dixon offers a diverse range of components for hydro excavation operations. From quick disconnects and double bolt clamps, to cam & groove couplings, Dixon has The Right Connection® to meet your needs.
Details
- Couplers have no internal valves, which provide maximum flow with minimum pressure drop
- Interchanges with Foster FST, Hansen ST, and Parker ST-Series
Specification
- Nitrile rubber seals are standard, providing a temperature range of -40°F to 250° (-40°C to 121°C)
Details
- Plug mounted sleeve guard protects against accidental disconnection
- Smooth bore full-flow design ensures maximum flow with minimal pressure drop
- Steel body components maximize service life by resisting the effects of brinelling and internal erosion
- Heavy duty knurled sleeve with locking pin provides maximum protection against brinelling and accidental disconnection
- Interchangeable with Aeroquip FD69, Parker Series-WB
Specifications
- Nitrile rubber seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C)
- Pressure rating 10000 PSI at ambient temperature 70°F (21°C)
Details
- Ball valve and poppet valve options available
- Interchangeable with Pioneer 4000 series, Faster NS/NV, Safeway S20, and Stucchi IR-series
Specification
- Nitrile rubber seal standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C)
Details
- Inner surface has dual gripping ridges
- Bolt lugs are reinforced to prevent bending out of alignment
- Saddles available to accommodate larger sizes
Cam & Groove
Type A, Type B, Type C, Type D, Type E, Type F, Type DC, Type DP
Details
- Manufactured to rigid tolerances for consistent, high-performance fit and reliability
- Cam arm pins made from stainless steel to prevent rusting or binding, ensuring long-term strength and enhanced safety
- Engineered with a recessed groove that holds the gasket firmly in place, promoting proper seal
- Versatile shank options available in both traditional and King Crimp to accommodate banding and crimping
To find more Dixon products used in hydro excavation, visit the construction market page on our website.
Summary
Hydro excavation continues to revolutionize excavation practices, offering solutions for a variety of industries. With a trusted partner like Dixon providing essential components, businesses can unlock the full potential of this groundbreaking technology.
For more information, visit dixonvalve.com or call 877.963.4966.
